FELETI offers a range of hygiene stations designed specifically for the food industry.
It is the ideal solution for meat processing, dairy, fish, confectionery, bakery and other industries that require hygiene procedures such as washing and sanitizing hands and shoe soles.

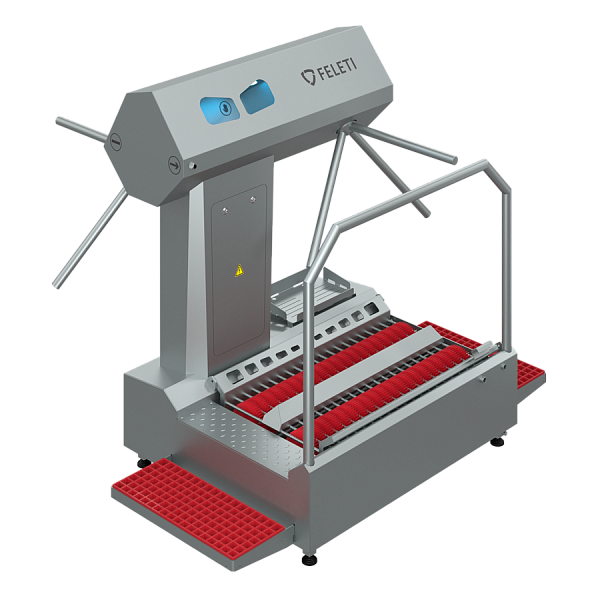

Hygiene station SD-3 is designed for non-contact washing, disinfection of hands, disinfection and cleaning the soles of staff shoes. The hygiene station consists of an entrance area and an exit area.
The design provides for the mandatory sequential execution of hand and shoe treatment actions. The station is equipped with a support railing and removable steps at the entrance and exit.
It is the ideal solution for meat processing, dairy, fish, confectionery, bakery and other industries that require hygiene procedures such as washing and sanitizing hands and shoe soles.
Hygiene station SD-3 is designed for non-contact washing, disinfection of hands, disinfection and cleaning the soles of staff shoes. The hygiene station consists of an entrance area and an exit area.
The design provides for the mandatory sequential execution of hand and shoe treatment actions. The station is equipped with a support railing and removable steps at the entrance and exit.
Shoes disinfection and cleaning module
Hand disinfection module
Entrance control module
Exit control module
Video
Equipment features
Characteristics
Detergent and disinfectant containers are located outside
Disinfectant and detergent supply adjustment system: holding the hand in the window of the hand disinfection module closer to the exit for 20 sec will start to increase/decrease the time for disinfectant supply, which will be signaled by blinking the red/blue light indicator respectively
Anti-panic system
Possibility of connection to the existing access control system at the enterprise
Quiet and smooth operation of the entrance control module
Turnstile unblocking system when leaving the production area
Removable paper towel dispenser
Hygienic design without overlays, seams, plastics
Metal shot blasting
Light indicators
Unlocking of the locking rotary mechanism to the output is carried out by a photosensor
Protection degree: IР54 according to GOST 14254-96
Main body is made of stainless steel AISI 304 with thickness of 3 mm.
Waste basket
Quick-release brushes. No need for additional tools
Anti-slip grating in the entrance and exit area
|
Model |
SD-3 L/R |
|
Design |
left-hand/right-hand |
|
Dimensions |
1690 х 1780 х 1510 |
|
Electrical connection |
230 V, 50 Hz |
|
Installed power, kW |
0.2 |
|
Protection type |
IP 54 |
|
Drain, DN |
50 |
|
Throughput capacity, max. persons/min |
7 |
|
Consumption of hand disinfectant, not more than ml/person |
5 |
|
Consumption of disinfectant for shoes disinfection not more than ml/per person |
200 |
|
Water consumption, not more than l/person |
1 |
|
Material |
stainless steel AISI 304 |
|
Brush dimensions, mm Horizontal brush |
2 х 1010 х Ø190 |
All Models
SD-1; SD-2; SD-4; SD-1A; SD-2A; SD-3A; SD-4A
