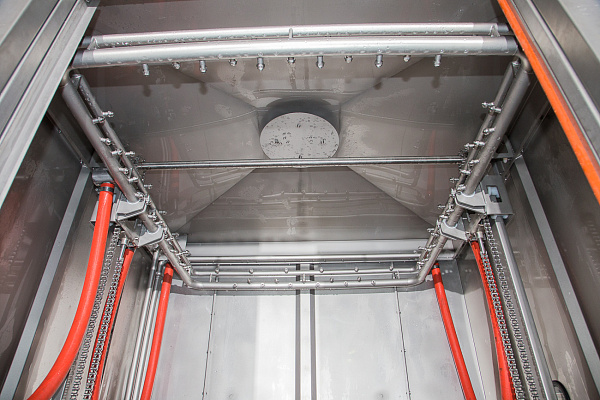

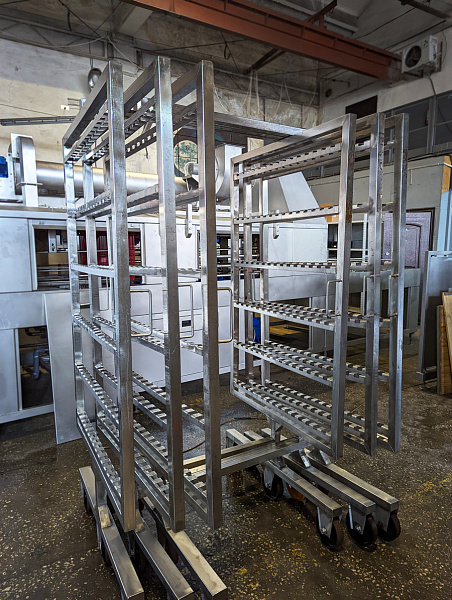

Designed for efficient washing of racks, cheese containers, baking tray trolley. Effectively removes contaminations after heat treatment, such as grease, grime, soot. The high quality of washing is achieved due to the exposure of the washing solution supplied through the nozzles under high pressure.

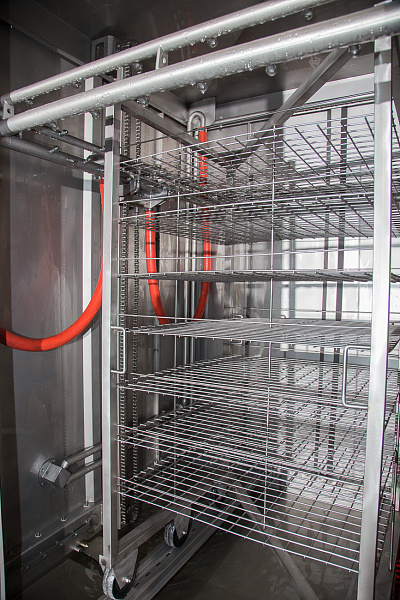

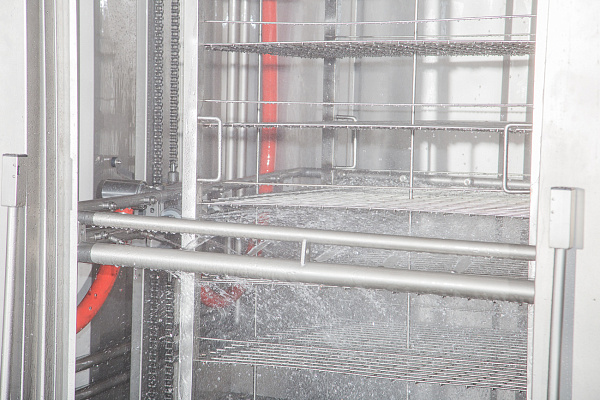

During the washing and rinsing process, the frame moves up and down, thereby achieving the maximum degree of washing of all hard-to-reach surfaces.
Options:
It is possible to manufacture machines in straight-through version with loading frames on one side and unloading on the other side.
The machines can be equipped with a rotary filter for automatic removal of contaminations.
At the request of the customer, the cabin of the machine can be enlarged for washing several frames at the same time.
Available with a lifting platform to facilitate the loading of frames, as well as automatic doors.
During the washing and rinsing process, the frame moves up and down, thereby achieving the maximum degree of washing of all hard-to-reach surfaces.
Options:
It is possible to manufacture machines in straight-through version with loading frames on one side and unloading on the other side.
The machines can be equipped with a rotary filter for automatic removal of contaminations.
At the request of the customer, the cabin of the machine can be enlarged for washing several frames at the same time.
Available with a lifting platform to facilitate the loading of frames, as well as automatic doors.
capacity is 20 pcs/hour and can be adjusted according to customer's request

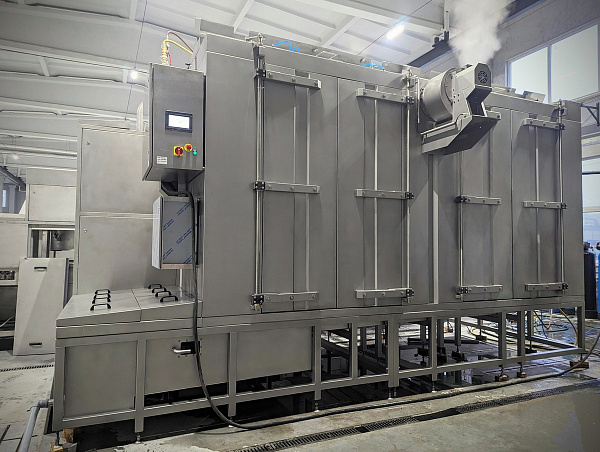

high-performance tunnel execution is possible
the washing booth can be enlarged to wash multiple frames simultaneously
lifting platform for easy loading
Video
Equipment features
Additional options

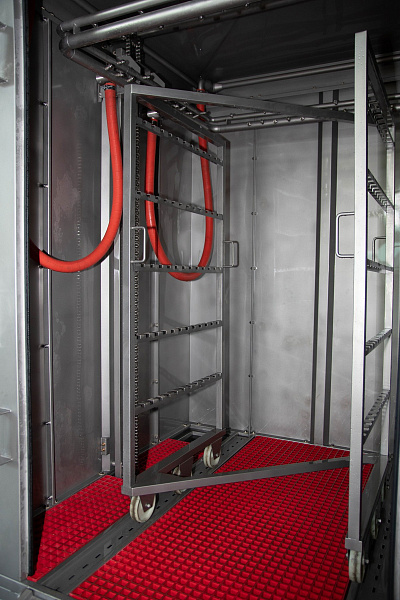

paired washing and rinsing frame
detergent dispenser with an overlay on the reference solution

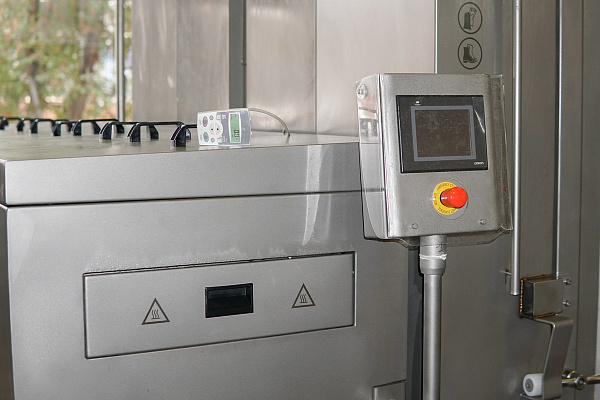

touch control panel
thermally insulated tank with cleaning solution

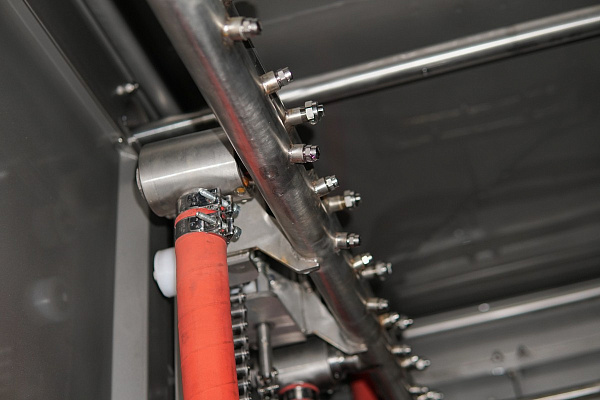

filter tray that prevents clogging of injectors
water flow separation system. For rinsing, clean mains water is used; waste water can be added to the tank with a cleaning solution, updating it partially or completely.
heating of the cleaning solution can be carried out by both heating elements (KECt), and steam (Lurea KSCt)
steam pressure reducing valve (for KSCt20)
cranes at the entrance to the machine
- Steam heating with automatic condensate drain (for KSCt20)
- Water pressure reducing valve
- Automatic doors
- Filter for steam supply
- Filter for water supply
- Supply of disinfectant to the rinsing frame
- Detergent dispenser with concentration output to the control panel
- Attached rotary filter
- Nozzle clogging sensor
- Active exhaust ventilation system
- Rinsing-sterilization with electric/steam heating t=85°C
- Additional electric heating power +12 kW
