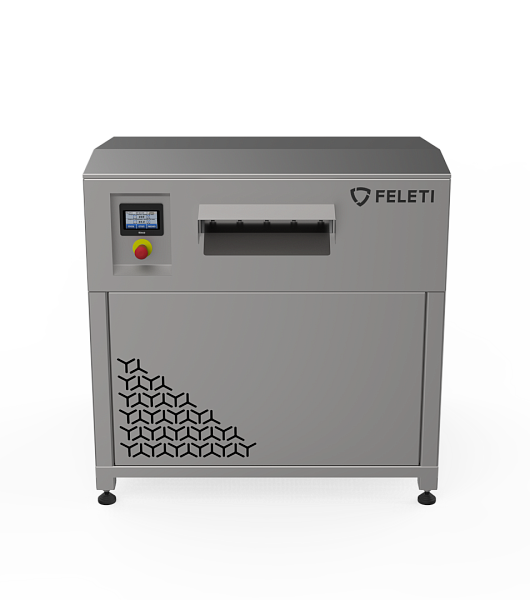

Designed to produce frozen flake ice for use in the food industry, shops, supermarkets, hotels, etc. Flakes with a temperature of about -7⁰ C and a thickness of about 1 mm is ideal for use in meat processing and refrigeration equipment.
Model range - MP-DL 800
Production capacity, kg/day - 800
Refrigerant - Freon 404
Power, kW - 3
Voltage, V/Hz - 400/50
Weight, kg - 270
Dimensions, mm - 1150х950х1200
Model range - MP-DL 800
Production capacity, kg/day - 800
Refrigerant - Freon 404
Power, kW - 3
Voltage, V/Hz - 400/50
Weight, kg - 270
Dimensions, mm - 1150х950х1200
due to the shape of the ice, the product packaging and the product itself are not damaged
higher cooling efficiency compared to granulated ice
Video
Equipment features
Characteristics
Additional options
the device is made of high quality stainless steel AISI304
robust design provides mechanical strength and easy maintenance of the equipment
touch control panel
automatic water flushing every 24 hours of operation without ice formation
easy, tool-free access to clean the relevant parts on all sides of the unit
integrated air-cooled compressor and condenser unit
refrigerant R449A; R404
easy access to the electrical components for servicing
integrated heat exchanger optimizes energy consumption
operating drum speed of 2 rpm
time setting system for switching the unit on and off
|
Model range |
Production capacity, kg/day |
Refrigerant |
Power, kW |
Voltage, V/Hz |
Weight, kg |
Dimensions, mm |
|
MP-DL 250 |
250 |
Freon 404 |
1,5 |
400/50 |
160 |
900х950х1200 |
|
MP-DL 500 |
500 |
Freon 404 |
2,2 |
400/50 |
200 |
1000х950х1200 |
|
MP-DL 800 |
800 |
Freon 404 |
3 |
400/50 |
270 |
1150х950х1200 |
|
MP-DL 1000 |
1000 |
Freon 404 |
4 |
400/50 |
400 |
1350х950х1200 |
- insulated bin for ice collection

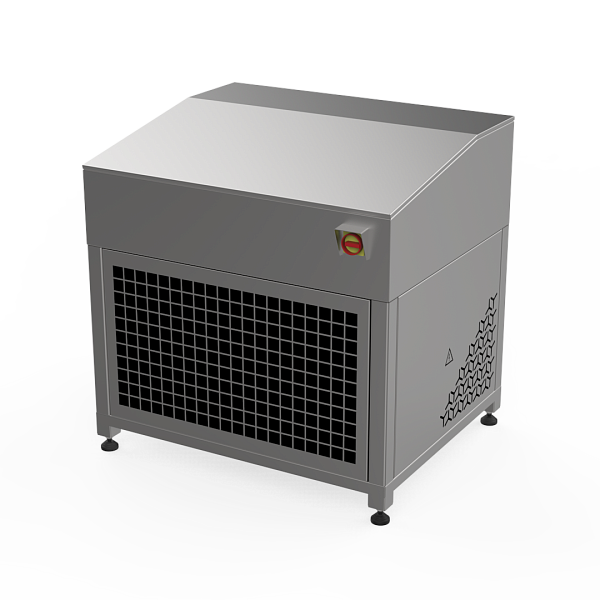

- separate remote cooling unit
