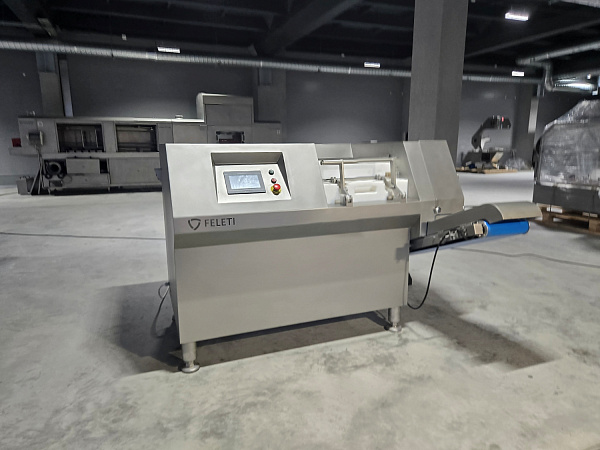

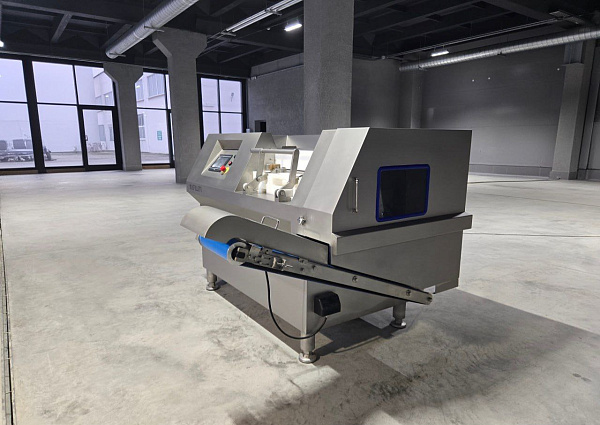

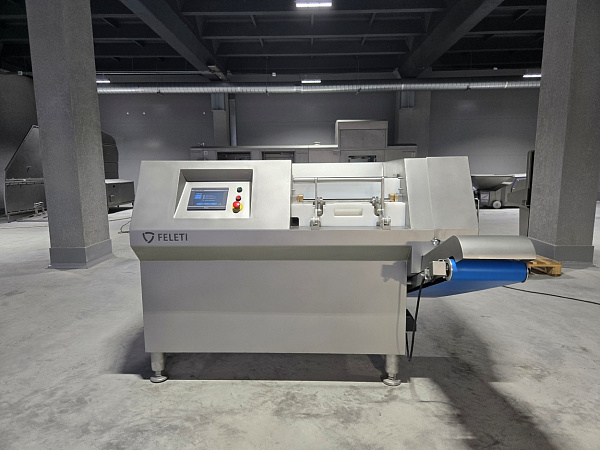

The industrial dicing machine MP-HM 120 is designed for cutting raw materials into cubes, slices of specified shape and size. Cubes can be made from meat, sausage, cheese, vegetables, fish, and similar products, excluding items containing hard inclusions such as bones.
Capable of cutting cubes ranging from 4x4 mm to 32x32 mm
Temperature of the raw material during cutting: -3…+30ºC
Video
Equipment features
Characteristics
Reliable and hygienic design ensures mechanical durability and easy maintenance.
All external surfaces of the cutter and surfaces contacting the product are made from high-quality stainless steel AISI 304.
Touch control panel with an intuitive interface.
Adjustable cutting speed.

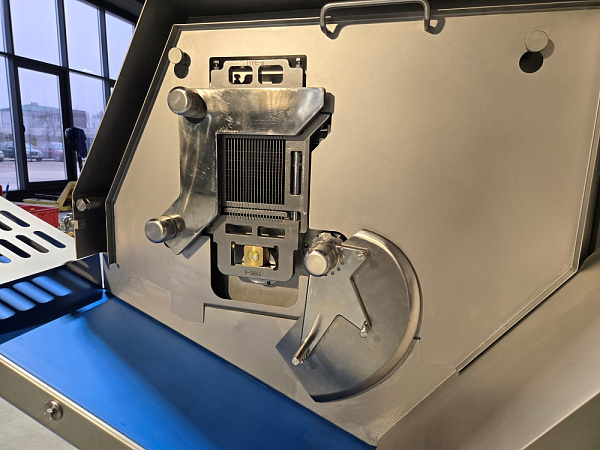

Fast reconfiguration of knife frames to the required cube size.
Chamber size: 120x120x550 mm.
Electrical cabinet protection level — IP65.
Receiving conveyor included as standard.
| Model Range | Cube size, mm | Power, kW | Chamber size, mm | Voltage, V/Hz | Weight, kg | Dimensions, mm |
| MP-HM 120 | 4х4 – 32х32 | 4 | 120х120х550 | 380/50 | 750 | 1900х1500х1300 |
