The SO-3 hygiene station consists of a shoe disinfection module, a hand washing module, a hand disinfection module, and an entry control module. The design provides for mandatory sequential execution of actions for hand washing and disinfection, shoe cleaning.
The station is equipped with support railings and removable steps at the entrance and exit.
The station is equipped with support railings and removable steps at the entrance and exit.
right- and left-hand version
any combination of modules
double-sided design is possible
can be equipped with a hand dryer
availability in stock
Video
Equipment features
Characteristics
Additional options
container with disinfectant located outside the case

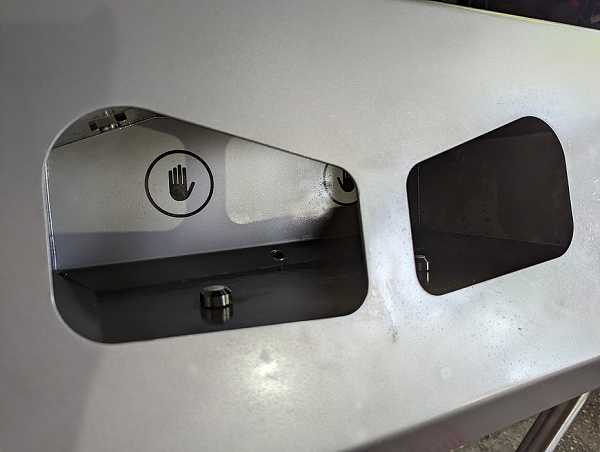

system for adjusting the supply of disinfectant: when keeping your hand in the hand disinfection module window closer to the exit for 20 seconds, the time for dispensing the disinfectant liquid will increase/decrease, which will be indicated by the blinking of a red/blue light indicator, respectively.
anti-panic system
ability to connect to the existing access control system at the enterprise
quiet and smooth operation of the input control module
turnstile unlocking system when leaving the production area
removable paper towel dispenser
hygienic design without overlays, seams, plastic

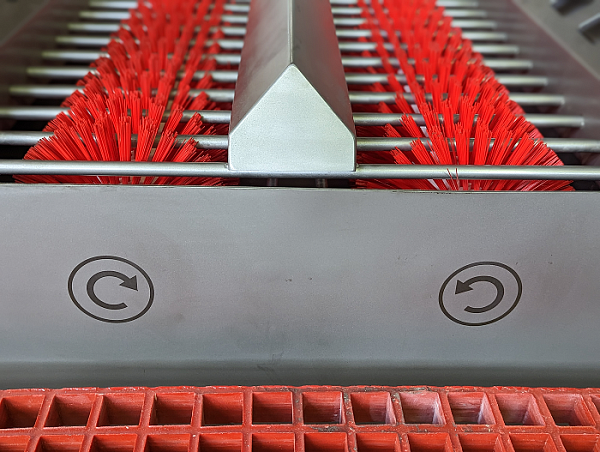

quick-release brushes without the need for additional tools
anti-slip grating in the entry and exit area
light indicators
unlocking the blocking rotating mechanism for the exit is done by a photosensor
the main body is made of AISI 304 stainless steel with a thickness of 3 mm
wastebasket
|
Model |
SO-1 |
SO-2 |
SO-3 |
SO-4 |
|
Execution |
left-hand/right-hand |
|||
|
Dimensions, mm |
1510х1090 х1510 |
2070х1090х1510 |
1950х1090х1620 |
2400х1090х1620 |
|
Electrical connection |
230 В, 50 Hz |
230 В, 50 Hz |
400 В, 50 Hz |
400 В, 50 Hz |
|
Power, kW |
0,2 |
0,2 |
1 |
1 |
|
Type of protection |
IP 54 |
IP 54 |
IP 54 |
IP 54 |
|
Water connection |
|
G ¾; 0,3 MPa |
G ¾; 0,3 MPa |
G ¾; 0,3 MPa |
|
Drain, DN |
50 |
50 |
50 |
50 |
|
Throughput capacity, person/min |
7 |
5 |
7 |
5 |
|
Hand spray consumption, ml/person |
5 |
5 |
5 |
5 |
|
Consumption of shoe polish, ml/person |
30 |
30 |
200 |
200 |
|
Soap consumption, ml/person |
- |
1,5 |
- |
1,5 |
|
Water consumption, l/person |
- |
4,5 |
1 |
5,5 |
|
V disinfection baths, l |
25 |
25 |
- |
- |
|
Material |
stainless steel AISI 304 |
|||
|
Brush sizes, mm |
- |
- |
2 х 1010 х Ø190 |
2 х 1010 х Ø190 |
- the temperature scanner on the stand has a face recognition and mask detection function
