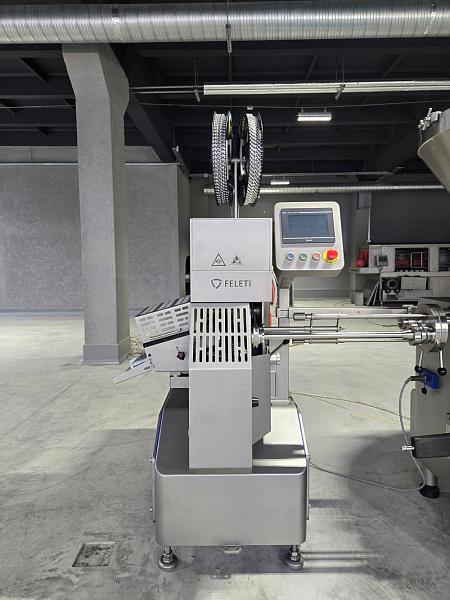

The automatic double-clipping clippers MP-SCA are designed for producing sausage logs in automatic mode by applying clips onto protein, polyamide, cellulose, or fiber casings.
They are also used for sealing other products formed into similar packaging types — processed cheeses, pâtés, meat semi-finished products, pasty, and granular products.
Significantly accelerates the production process
Improves shaping quality
Ensures a neat, attractive appearance of the products
Video
Equipment features
Characteristics
Additional options
Reliable and hygienic design provides mechanical strength and ease of maintenance.
All external surfaces of the clipper and surfaces contacting the product are made of high-quality stainless steel AISI 304.
Touch control panel with an intuitive interface.
Adjustable clipping speed up to 100 cycles per minute.
Rapid reconfiguration for clips of different pitch sizes.
Convenient and fast height adjustment to fit the clipper to the piston height.
Casing diameter — from 30 to 160 mm.
Continuous clips — P-shaped in coils.
Electrical cabinet protection level — IP65.
Loop feeding device included as standard equipment.
| Model Range | Clipping speed, pcs/min | Power, kW | Air pressure, MPa | Voltage, V/Hz | Weight, kg | Dimensions, mm |
| MP-SCA 10 | 30-100 | 4 | 0,5-0,6 | 400/50 | 500 | 1200х1100х1900 |
Revolver-type feeder for 2 nozzles.
Log conveyor.
